150V to 550V AC voltage working range touch screen display featuring ground fault monitoring suitable for smart applications

Product Description:

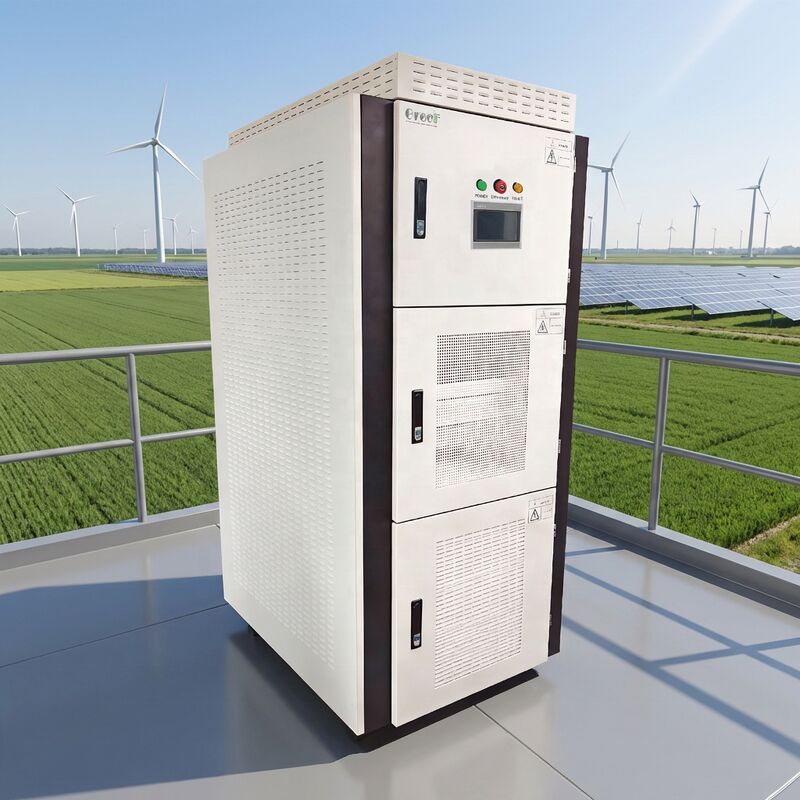

The GREEF ENERGY multi-functional converter combines several important functions into one device. It is designed to perform AC-to-DC rectification specifically for Permanent Magnet Generators (PMGs), as well as battery charging. Additionally, it supports DC-to-AC inversion, making it versatile for various energy applications.

Equipped with a dual LCD touchscreen that can be customized, this converter employs advanced converter technology to maintain stable voltage and frequency control for Permanent Magnet Synchronous Generators (PMSGs). This ensures a continuous and reliable power supply to connected loads without interruptions.

Moreover, the converter can be easily configured to operate in a grid-tied mode. In this mode, it not only functions seamlessly with the power grid but also allows for grid charging, providing flexible and efficient energy management options.

Features:

The EMS smart energy management system offers multiple configurable operating modes to suit various needs, including off-grid, grid-tied, and grid charging options. This flexibility ensures optimal performance across different energy environments.

Equipped with a double LCD smart touch screen display, the system provides an intuitive interface for easy monitoring and control. Additionally, it incorporates advanced generator power curve tracking technology, enhancing energy efficiency and system responsiveness.

For reliable power supply, the EMS system features AC/DC dual backup for auxiliary power. It also employs control technology designed specifically to manage unbalanced loads, ensuring stable and consistent operation under varying conditions.

Communication and integration are facilitated by the standard RS 485 Modbus RTU protocol, allowing seamless connection with other devices and systems.

Optional functionalities include a PWM dump load with over-voltage and over-speed protection, water gate motor control, and WIFI/LAN remote monitoring and control via a dedicated app. These options provide enhanced safety, convenience, and control capabilities.

Moreover, the system supports customized sensor control functions and the addition of a Static Transfer Switch (STS) for both grid-tied and off-grid applications, allowing further customization and adaptability to specific project requirements.

Technical Parameters:

The following data presents detailed specifications for the ACPCS series models ranging from 100kt to 500kt. These specifications cover various electrical parameters related to the AC input side, battery input, and output side for grid-connected operations.

The rated power for the models ACPCS-100kt, ACPCS-150kt, ACPCS-200kt, ACPCS-250kt, ACPCS-300kt, and ACPCS-500kt are 100 kW, 150 kW, 200 kW, 250 kW, 300 kW, and 500 kW, respectively. The rated voltage should be at least 240 Vac, with an optimal generator rated voltage around 450 Vac. The start voltage required is no less than 180 Vac, and the AC voltage working range extends from 150 Vac to 550 Vac. Maximum AC current varies by model, with the highest being 1203 A for the 500kt model.

The battery input section is designed to work with lithium-ion battery types. Battery voltages are customizable within a range of 400 Vdc to 900 Vdc. The maximum charging and discharging current differs among models, ranging from 250 A for the 100kt model up to 750 A for the 300kt model, with some variations depending on specific configurations.

On the output side, the rated charging and discharging power corresponds closely with the rated input power, scaled from 100 kW up to 500 kW. Maximum charge and discharge power can exceed the rated power, providing additional capacity when needed. The rated charge and discharge current and maximum current values vary accordingly, reaching as high as 866 A for the largest model.

The rated grid voltage is set at 400 V, with a permissible voltage range from 300 V to 460 V. The rated frequency supports both 50 Hz and 60 Hz. The current total harmonic distortion rate is kept below 3% at rated power, and the power factor remains above 0.99. The power factor range is flexible, from -1 to 1, allowing for various operational modes. Additionally, the system supports an overload capacity of 1.2 times the rated power continuously for one minute.

Applications:

Customization:

The Greef On Grid Controller, model number AC PCS, is a high-performance wind controller designed to optimize energy management with a maximum efficiency of 95%. Originating from China and certified with CE, this product ensures reliable and efficient operation for various power requirements ranging from 100kW up to 1000kW.

Equipped with a touch screen display, the On Grid Controller facilitates easy and intuitive monitoring of wind turbine speed and wind speed, providing real-time data to enhance system performance. The communication modes supported include Ethernet, RS485, and WIFI, allowing seamless integration with existing systems and remote monitoring capabilities.

With advanced ground fault monitoring features, this wind controller ensures safety and reliability during operation. The product is securely packaged using foam and plywooden cases to guarantee safe delivery, with a delivery time of 25 working days.

Offering flexible payment terms such as T/T, Western Union, MoneyGram, and L/C, Greef supports a minimum order quantity of just 1 set. Pricing is negotiable to accommodate various customer needs. With a strong supply ability, the AC PCS On Grid Controller is an ideal solution for efficient wind power management.

Packing and Shipping:

Product Packaging:

The On Grid Controller is securely packaged in a sturdy, eco-friendly cardboard box designed to protect the device during transit. Inside the box, the controller is cushioned with custom foam inserts to prevent any movement or damage. The package includes the On Grid Controller unit, an installation manual, a warranty card, and all necessary mounting hardware. Each box is clearly labeled with product specifications and handling instructions to ensure safe delivery.

Shipping:

All On Grid Controller orders are processed within 1-2 business days. The product is shipped via reliable courier services with tracking information provided to the customer. We offer multiple shipping options, including standard and expedited delivery. The shipment is carefully handled to avoid any damage, and insurance is available upon request for added security. International shipping is also supported, with customs documentation included as required.
