نام تجاری:
Greef
گواهی:
CE
Model Number:
TYP

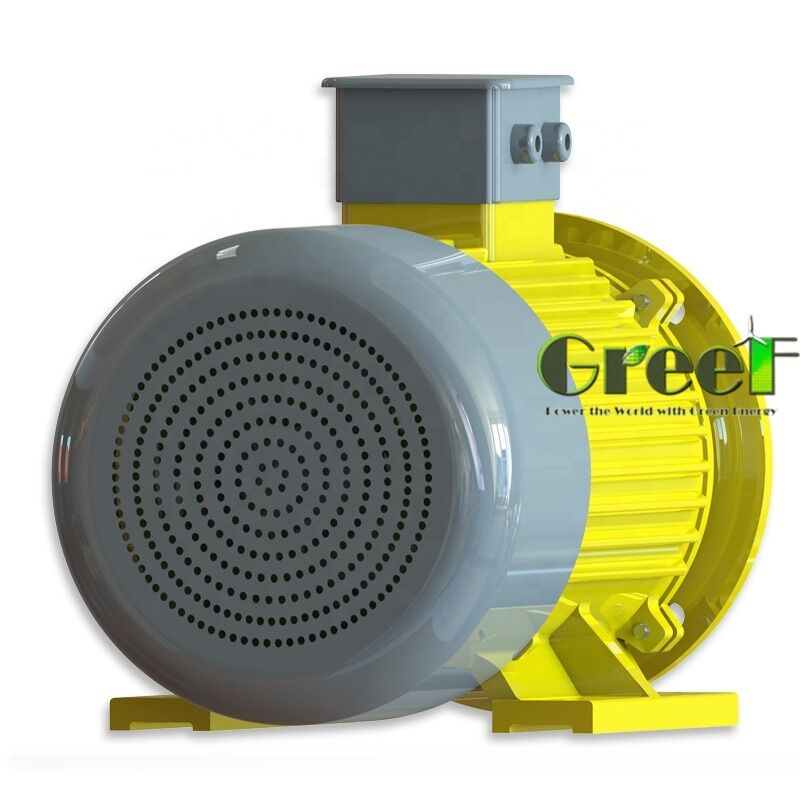

TYP Magnet motors are equipped with rotors that incorporate permanent magnets. This design technology delivers several notable benefits, including enhanced efficiency and an increased power density relative to the motor frame size.
These motors are powered by frequency inverters, allowing them to maintain a steady torque over a broad spectrum of speeds. They perform effectively even at low speeds, achieving efficiency levels that surpass those of traditional induction motors. Additionally, TYP Magnet motors do not require forced ventilation for cooling, further improving their operational efficiency.
On the other hand, W21 Magnet motors are characterized by their low operational speeds, minimal noise production, and energy-saving capabilities, making them suitable for applications where quiet and efficient performance is essential.
This motor saves up to 30% energy compared to traditional induction motors operated by inverters. It maintains high efficiency throughout a wide load range, from 20% to 110% of the rated load, achieving measured energy savings between 10% and 40%.
Additionally, it features a very high power factor, close to 1.0 at rated conditions and consistently above 0.95. This high power factor helps reduce stator current and minimizes copper losses, enhancing overall energy efficiency.
The motor delivers constant torque across a broad speed spectrum without the need for forced ventilation. This makes it ideal for applications that require both speed variation and constant torque, even at low speeds, all without the necessity for an encoder.
Equipped with bearings that have an L10 life of up to 100,000 hours—equivalent to over 10 years of continuous operation—the motor ensures durability and reliability. It also includes grease nipples that allow for easy re-lubrication, significantly reducing maintenance downtime.
The motor utilizes powerful NdFeB (Neodymium/Iron/Boron) rare-earth magnets, which are about 18 times stronger than traditional ferrite magnets. These magnets are coated with a protective epoxy layer, providing excellent mechanical strength and corrosion resistance.
Embedded PTC (Positive Temperature Coefficient) thermistors in the windings offer comprehensive protection against overheating. This includes safeguards against phase loss, overload, and voltage irregularities, ensuring safe and reliable operation.
As a synchronous motor, its rotor speed synchronizes precisely with the stator's rotating magnetic field, eliminating slip and rotor power loss. This synchronization leads to stable speeds that are unaffected by voltage fluctuations or changes in load, thereby enhancing control accuracy.
The motor employs a maximum torque/current ratio control mode, maintaining a high power factor across the entire speed range. This approach significantly reduces the motor's stator current by 15% to 30%, which subsequently lowers cable transmission losses and effectively increases cable capacity.
Thanks to its high efficiency and reduced losses, the motor experiences a temperature rise that is 15–20°C lower than that of comparable asynchronous motors under similar operating conditions.
This motor is widely applied in various industries, including injection molding machines, air compressors, pipe manufacturing equipment, hydraulic machinery, food processing machines, extruders, wire drawing machines, and pharmaceutical devices. It must be operated in conjunction with a dedicated permanent magnet motor inverter for optimal performance.
By replacing a 37kW IE2 (GB3) induction motor, users can expect to save approximately 9,000 RMB annually in energy costs based on continuous 24/7 operation, demonstrating substantial economic benefits.
The TYP series high-efficiency permanent magnet frequency conversion synchronous motors are versatile and reliable. They have been engineered to deliver outstanding performance across a wide range of applications.
These motors are commonly utilized in various industries, including injection molding machines, air compressors, and pipe making equipment. Their advanced design ensures optimal efficiency and consistent operation in demanding environments.
In addition to industrial machinery, the TYP series motors are also employed in hydraulic machinery, food processing equipment, and cement pipe production lines. Their adaptability makes them an ideal choice for many manufacturing processes.
Furthermore, these synchronous motors find applications in plastic extruders, wire drawing machines, and pharmaceutical equipment, demonstrating their broad utility in both heavy industry and specialized fields.
Greef offers customized Permanent Magnet Motor solutions tailored to meet your specific requirements. Our TYP model, manufactured in China and certified with CE, guarantees high quality and reliability. We specialize in Synchronous Magnet Motor and Brushless Permanent Magnet Motor designs, ensuring a high power factor motor performance suitable for various industrial applications.
Each motor features a durable cast iron generator shell material and operates efficiently within a speed range of 0-8000 RPM. The insulating resistance is rated at 100Mohm Min (500Vdc), ensuring excellent electrical insulation and safety.
We accept a minimum order quantity of 1 set, with pricing negotiable to suit your budget. Packaging is done carefully using foam and plywooden cases to ensure safe delivery. Our standard delivery time is 25 working days.
Payment terms are flexible and include T/T, Western Union, MoneyGram, and L/C. With a strong supply ability, Greef is your trusted partner for personalized motor solutions.
Our Permanent Magnet Motors are carefully packaged to ensure maximum protection during transit. Each motor is securely wrapped in anti-static and shock-absorbent materials, then placed inside a sturdy, custom-designed cardboard box to prevent any damage. For added safety, the boxes are reinforced with foam inserts to stabilize the motor and minimize movement.
We offer multiple shipping options to accommodate your needs, including standard ground shipping, expedited air freight, and international courier services. All shipments are tracked and insured to guarantee safe delivery. Upon dispatch, you will receive a tracking number to monitor the progress of your order until it arrives at your specified destination.
Please ensure that the shipping address provided is accurate to avoid any delays. If you have any special packaging or shipping requirements, feel free to contact our customer service team for assistance.
