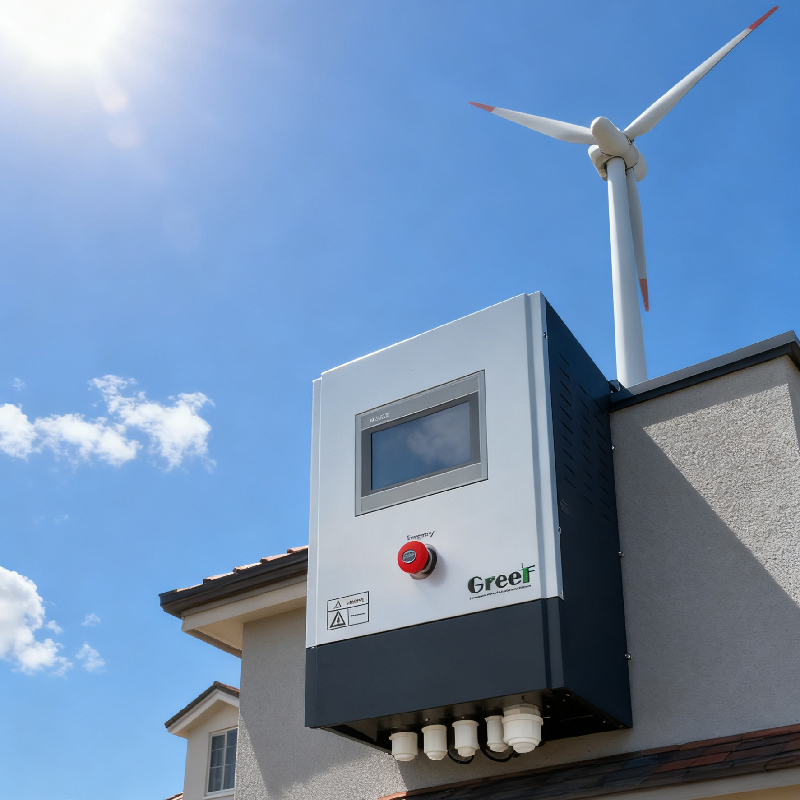

Name: On Grid Controller with Rectifier Control and DC Output Functions for Wind Turbine Systems
Brand: Qingdao Greef New Energy Equipment Co., Ltd
SKU: GT-PCTC Series Controller
Price: 1,730.00 USD
Availability: InStock

خونه > محصولات > بر روی شبکه کنترل >

On Grid Controller with Rectifier Control and DC Output Functions for Wind Turbine Systems

Rectifier Function On Grid Controller,Control Function Grid-Tied Controller,DC Output Function Wind Turbine Controller

Control Function Grid-Tied Controller

DC Output Function Wind Turbine Controller

نام تجاری:

Greef

گواهی:

Model Number:

GT-PCTC Series Controller

با ما تماس بگیرید

درخواست نقل قول

جزئیات محصول

رابط ارتباطی (اختیاری):

RS485/USB/GPRS/WIFI/Ethernet

راندمان MPPT:

99.9 ٪

بسامد خروجی:

50 هرتز/60 هرتز

ولتاژ ثابت PWM:

≥400dc، ≥700dc

نظارت بر شبکه:

بله

تابع:

یکسو کننده ، کنترل ، خروجی DC

ولتاژ نامی توربین بادی:

AC220V-600V

درجه حفاظت:

IP20 (داخلی) IP65 (در فضای باز)

شرایط پرداخت و حمل و نقل

Minimum Order Quantity

1Set

قیمت

negotiable

Packaging Details

Foam+plywooden Case

Delivery Time

25 Working Days

شرایط پرداخت

T/T، Western Union، MoneyGram، L/C

Supply Ability

محصولات مرتبط

ویدیو

Efficient On Grid Controller with IP20/IP65 Protection 99.9% MPPT Efficiency and AC220V-600V Rated Voltage

بهترین قیمت رو بدست بیار

ویدیو

Advanced Technology Wind Controller with DC Output and Grid Monitoring for On Grid Systems

بهترین قیمت رو بدست بیار

ویدیو

Ethernet Communication Interface On Grid Controller with AC220V-600V Rated Voltage and Natural Convection Cooling

بهترین قیمت رو بدست بیار

ویدیو

On Grid Controller with Rectifier Control and DC Output Functions for Wind Generator Systems

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

حالا تماس بگیرید

توضیحات محصول

Grid Monitoring On Grid Controller PWM Constant Voltage of ≥700dc

The GT-PCTC series grid-tied controller is a technologically advanced component for on-grid wind generator systems. It efficiently converts three-phase AC current from wind turbines into DC current before sending it to grid-tie inverters.

Key Features

Dual safety control systems: PWM constant voltage and three-phase dump load brake
Compatible with leading solar inverters (Growatt, Deye, Solis, Ivet)
LCD touch screen display with comprehensive monitoring capabilities
Multiple protection functions including over voltage and grid cut-off
Optional communication interfaces (RS485/USB/GPRS/WIFI/Ethernet)

Technical Specifications

Type	GT-PCTC-1.5KW	GT-PCTC-2KW	GT-PCTC-3KW	GT-PCTC-5KW
Wind turbine rated power	1.5KW	2KW	3KW	5KW
Wind turbine rated voltage	AC220V-240V	AC220V-240V	AC220V-380V	AC380-450V
PWM constant voltage	≥400dc		≥700dc
3-phase dump load time-lapse	12-20 min

Additional Specifications

Function: Rectifier, Control, DC output

Automatic protection: Over voltage, Grid cut off, Regulated supply output, Arrester

Manual functions: Manual brake, Reset, Emergency switch

Environment temperature: -30°C to 60°C

Relative humidity: <90% (No condensation)

Noise (1m): <40dB

Degree of protection: IP20 (Indoor) / IP65 (Outdoors)

Cooling method: Forced air cooling

Applications

Designed for grid-connected systems including wind power generation, hydroelectric power generation, and solar power generation applications.

Customization Options

Brand: Greef
Model: GT-PCTC Series Controller
Certification: CE
Minimum Order: 1 Set
Packaging: Foam + plywooden case
Delivery Time: 25 working days
Payment Options: T/T, Western Union, MoneyGram, L/C

Package Contents

On Grid Controller
User Manual
Mounting Hardware

Products are carefully packaged and typically shipped within 3-5 business days after order confirmation.
