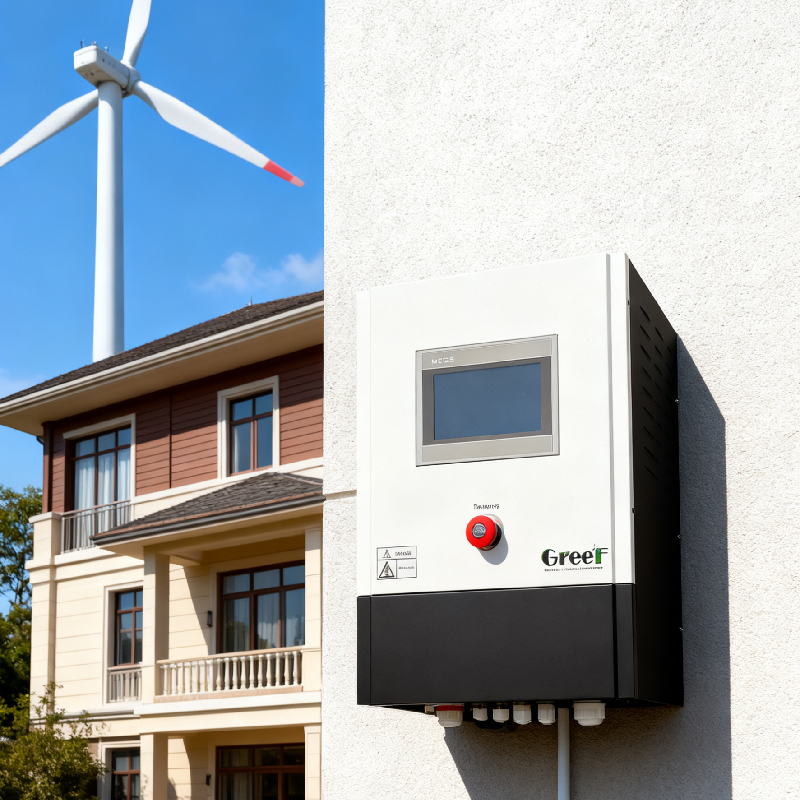

Name: On Grid Controller with Rectifier Control and DC Output Functions for Wind Generator Systems
Brand: Qingdao Greef New Energy Equipment Co., Ltd
SKU: GT-PCTC Series Controller
Price: 1,730.00 USD
Availability: InStock

خونه > محصولات > بر روی شبکه کنترل >

On Grid Controller with Rectifier Control and DC Output Functions for Wind Generator Systems

Rectifier Function On Grid Controller,Control Function Grid-Tied Controller,DC Output Function Wind Generator Controller

Control Function Grid-Tied Controller

DC Output Function Wind Generator Controller

نام تجاری:

Greef

گواهی:

Model Number:

GT-PCTC Series Controller

با ما تماس بگیرید

درخواست نقل قول

جزئیات محصول

نوع محصول:

حفاظت در برابر ولتاژ بیش از حد، حفاظت از قطع شبکه، خروجی منبع تغذیه تنظیم شده، قطع کننده

نظارت بر شبکه:

بله

روش خنک کننده:

همرفت طبیعی

تابع:

یکسو کننده ، کنترل ، خروجی DC

درجه حفاظت:

IP20 (داخلی) IP65 (در فضای باز)

ولتاژ ثابت PWM:

≥400dc، ≥700dc

راندمان MPPT:

99.9 ٪

بسامد خروجی:

50 هرتز/60 هرتز

شرایط پرداخت و حمل و نقل

Minimum Order Quantity

1Set

قیمت

negotiable

Packaging Details

Foam+plywooden Case

Delivery Time

25 Working Days

شرایط پرداخت

T/T، Western Union، MoneyGram، L/C

Supply Ability

محصولات مرتبط

AC Generator-Battery Hybrid Converter with 450 Vac Optimal Generator Rated Voltage and LCD SMART Touch Screen Display for 50/60 Hz Rated Grid Frequency

بهترین قیمت رو بدست بیار

LCD Smart Touch Screen On Grid Controller with 240-550V AC Voltage Range and 95% Maximum Efficiency for Energy Management

بهترین قیمت رو بدست بیار

AC Generator-Battery Hybrid Converter with 95% Maximum Efficiency and 240-550V AC Voltage Range Featuring RS485 Communication Mode

بهترین قیمت رو بدست بیار

95% Maximum Efficiency On Grid Controller with LCD Smart Touch Screen and Lithium-Ion Battery for Energy Management

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

حالا تماس بگیرید

توضیحات محصول

Wind Turbine Grid-Tied Controller AC220V-600V with Manual Function and Emergency Switch

Product Overview

The Grid-Tied Controller is a critical component for wind generator systems connected to the power grid. This advanced controller converts three-phase AC current from wind turbines into DC current for grid-tie inverters, featuring dual safety systems (PWM constant voltage and three-phase dump load brake) for optimal performance and reliability.

Key Features

Compatible with leading solar inverters (Growatt, Deye, Solis, lvet)
Double safety control systems for enhanced protection
LCD touch screen display with comprehensive monitoring
Manual brake, reset, and emergency switch functions
Multiple protection features including over voltage and grid cut-off
Optional communication interfaces (RS485/USB/GPRS/WIFI/Ethernet)

Technical Specifications

Type	GT-PCTC-1.5KW	GT-PCTC-2KW	GT-PCTC-3KW	GT-PCTC-5KW
Wind turbine rated power	1.5KW	2KW	3KW	5KW
Wind turbine rated voltage	AC220V-240V	AC220V-240V	AC220V-380V	AC380-450V
PWM constant voltage	≥400dc	≥700dc	≥700dc	≥700dc

Type	GT-PCTC-10KW	GT-PCTC-20KW	GT-PCTC-30KW	GT-ACDC-50KW	GT-ACDC-100KW
Wind turbine rated power	10KW	20KW	30KW	50KW	100KW
Wind turbine rated voltage	AC380-520V

General Specifications

Environment temperature: -30-60°C
Relative humidity: ＜90% (No condensation)
Noise (1m): ＜40dB
Degree of protection: IP20 (Indoor) / IP65 (Outdoors)
Cooling method: Forced air cooling

Greef has a professional team to create tailor-made systems for customers. The images shown are examples - contact us for custom requirements.

Applications

Designed for grid-connected systems including wind power generation, hydroelectric power generation, and solar power generation applications.

Customization Options

Brand Name: Greef
Model Number: GT-PCTC Series Controller
Certification: CE
Minimum Order Quantity: 1 Set
PWM Constant Voltage: ≥400dc, ≥700dc
MPPT Efficiency: 99.9%

Packaging & Shipping

Package Includes: Controller unit, user manual, mounting hardware
Packaging: Foam + plywood case
Delivery Time: 25 working days
Payment Terms: T/T, Western Union, MoneyGram, L/C
