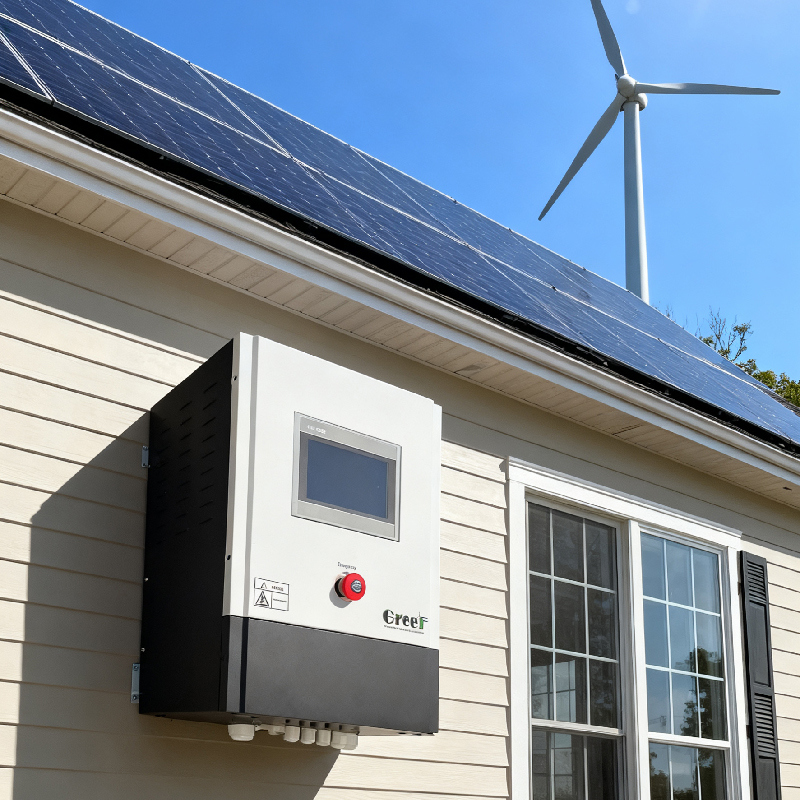

Name: Grid-Tied Controller with Rated Voltage AC220V-600V MPPT Efficiency 99.9% and IP20 Indoor IP65 Outdoors Protection
Brand: Qingdao Greef New Energy Equipment Co., Ltd
SKU: GT-PCTC Series Controller
Price: 1,730.00 USD
Availability: InStock

خونه > محصولات > بر روی شبکه کنترل >

Grid-Tied Controller with Rated Voltage AC220V-600V MPPT Efficiency 99.9% and IP20 Indoor IP65 Outdoors Protection

Rated Voltage AC220V-600V Grid-Tied Controller,MPPT Efficiency 99.9% On Grid Controller,IP20 Indoor IP65 Outdoors Protection Wind Turbine Controller

MPPT Efficiency 99.9% On Grid Controller

IP20 Indoor IP65 Outdoors Protection Wind Turbine Controller

نام تجاری:

Greef

گواهی:

Model Number:

GT-PCTC Series Controller

با ما تماس بگیرید

درخواست نقل قول

جزئیات محصول

نظارت بر شبکه:

بله

عملکرد دستی:

ترمز دستی، تنظیم مجدد، سوئیچ اضطراری

روش خنک کننده:

همرفت طبیعی

تابع:

یکسو کننده ، کنترل ، خروجی DC

ولتاژ نامی توربین بادی:

AC220V-600V

راندمان MPPT:

99.9 ٪

بسامد خروجی:

50 هرتز/60 هرتز

نوع محصول:

حفاظت در برابر ولتاژ بیش از حد، حفاظت از قطع شبکه، خروجی منبع تغذیه تنظیم شده، قطع کننده

شرایط پرداخت و حمل و نقل

Minimum Order Quantity

1Set

قیمت

negotiable

Packaging Details

Foam+plywooden Case

Delivery Time

25 Working Days

شرایط پرداخت

T/T، Western Union، MoneyGram، L/C

Supply Ability

محصولات مرتبط

ویدیو

Efficient On Grid Controller with IP20/IP65 Protection 99.9% MPPT Efficiency and AC220V-600V Rated Voltage

بهترین قیمت رو بدست بیار

ویدیو

Advanced Technology Wind Controller with DC Output and Grid Monitoring for On Grid Systems

بهترین قیمت رو بدست بیار

ویدیو

Ethernet Communication Interface On Grid Controller with AC220V-600V Rated Voltage and Natural Convection Cooling

بهترین قیمت رو بدست بیار

ویدیو

On Grid Controller with Rectifier Control and DC Output Functions for Wind Generator Systems

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

حالا تماس بگیرید

توضیحات محصول

Grid Cut Off Protection DC DC Switching Controllers for Wind Turbines

Rated Voltage: AC220V-600V

Product Introduction

The Grid-Tied Controller is the most technologically critical component in wind generator on-grid systems. It converts three-phase AC current from wind turbines into DC current, which is then sent to grid-tie inverters.

GT-PCTC Series Features

Our professional GT-PCTC series controllers feature dual safety control systems:

PWM constant voltage system
Three-phase dump load brake system

This innovative solution integrates with solar inverters from leading brands including Growatt, Deye, Solis, and Ivet, enabling solar inverters to adapt to wind turbine operating conditions.

Product Parameters

Type	GT-PCTC-1.5KW	GT-PCTC-2KW	GT-PCTC-3KW	GT-PCTC-5KW
Wind turbine rated power	1.5KW	2KW	3KW	5KW
Wind turbine rated voltage	AC220V-240V	AC220V-240V	AC220V-380V	AC380-450V
Function	Rectifier, Control, DC output
Automatic protection function	Over voltage protection, Grid cut off protection, Regulated supply output, Arrester
Manual function	Manual brake, Reset, Emergency switch
Display mode	LCD Touch Screen
3-phase dump load time-lapse	12-20 min
Environment temperature	-30-60°C
Degree of protection	IP20(Indoor) IP65 (Outdoors)

Display Content

The LCD touch screen displays comprehensive data including generator speed (rpm), input voltage (Vdc), input current (Vac), output power (kW), grid voltage (Vac), grid current (A), and power generation statistics (daily, monthly, yearly).

System Solution

Applications

Designed for grid-connected systems including:

Wind power generation
Hydroelectric power generation
Solar power generation

Customization Options

Brand Name: Greef
Model Number: GT-PCTC Series Controller
Certification: CE
Minimum Order Quantity: 1Set
Price: Negotiable
Packaging Details: Foam+plywooden Case
Delivery Time: 25 Working Days
Payment Terms: T/T, Western Union, MoneyGram, L/C
MPPT Efficiency: 99.9%
Cooling Method: Natural Convection
Additional Features: Power curve controller function, grid tied controller, powerful remote control

Packing and Shipping

Each controller is securely packaged in a sturdy cardboard box with protective foam inserts to prevent damage during transit.

Orders processed and shipped within 1-2 business days
Worldwide shipping with tracking information
Variable delivery times with expedited options available
